Runner Services

Runner services are background processes on the runner daemon. They can expose interactive UI panels in the PizzaPi web interface and advertise custom triggers that agent sessions can subscribe to.

A service ships inside an overlay package that declares it under pi.pizzapi.services. That is the only way to load one — a service runs on the daemon, outside any session sandbox, so it needs an explicit trust grant that a package install can carry and a loose file cannot.

The two pages divide cleanly: the overlay page is about packaging and trust (manifest layout, install scope, grants, the SDK); this page is about what a service does once loaded (handler lifecycle, panels, triggers, sigils, connectivity). There is no separate “overlay service” concept — a runner service is simply one capability an overlay package can declare.

Runner services are runner-global

Services are always runner-wide. A package configured at project scope does not mount its services.

The daemon keeps a single service registry shared by every workspace on the machine. Mounting a service found in one checkout would silently activate that project’s code for unrelated sessions, so PizzaPi does not do it. Overlay packages that declare services are still installable at project scope — PizzaPi warns that the services stay inactive.

Supporting genuinely project-scoped services needs scoped registry instances and lifecycle isolation, not a global grant. See §6.3 of docs/specs/pi-pizzapi-overlay.md.

---

Quick Start

1. Create the package:

   mkdir -p ~/my-service/service/panel
   cd ~/my-service

2. Declare the service in package.json:

   package.json

   {
     "name": "@me/my-service",
     "version": "1.0.0",
     "private": true,
     "type": "module",
     "pi": {
       "pizzapi": {
         "schemaVersion": 1,
         "services": [
           {
             "id": "my-service",
             "label": "My Service",
             "icon": "activity",
             "entry": "./service/index.ts",
             "panel": { "dir": "./service/panel" },
             "triggers": [
               {
                 "type": "my-service:something_happened",
                 "label": "Something Happened",
                 "description": "Emitted when something noteworthy occurs"
               }
             ]
           }
         ]
       }
     }
   }

3. Add service/index.ts with a ServiceHandler class (see ServiceHandler API below).

4. Add service/panel/index.html with self-contained HTML/CSS/JS (see Panel Guidelines below).

5. Install and grant the service:

   pizza install ~/my-service --allow-daemon-services

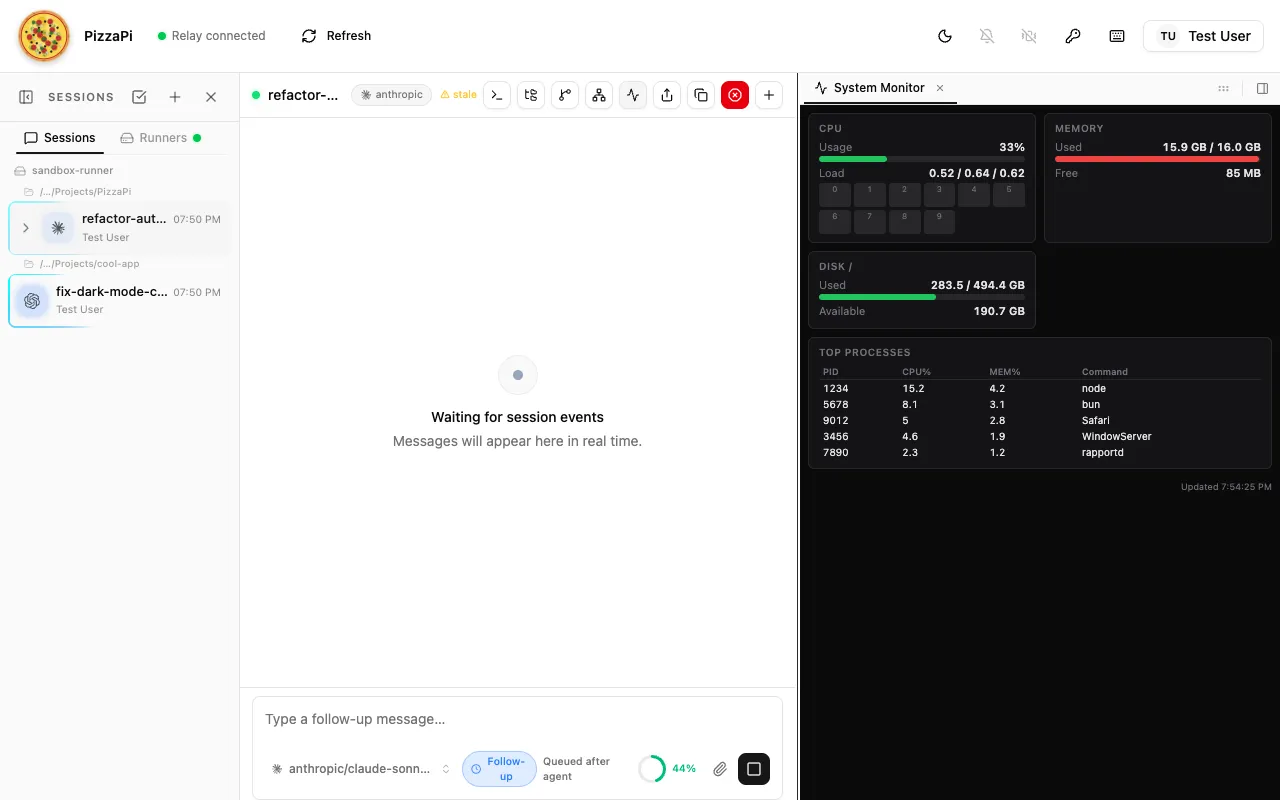

6. Restart the runner — the panel button appears in the session toolbar header, and triggers become discoverable by agents.

Tip

The grant is per package and per service ID. Installing without --allow-daemon-services still installs agents, rules, skills and MCP servers — the services just stay inactive until granted.

---

Folder Structure

• Directorymy-service/

  • package.json — the pi.pizzapi.services declaration
  • Directoryservice/

    • index.ts — ServiceHandler module (default export)
    • triggers.json — trigger definitions (optional)
    • sigils.json — sigil type definitions (optional)
    • Directorypanel/

      • index.html — self-contained UI (HTML/CSS/JS)
      • … — additional static assets

Layout inside the package is up to you — only the paths named in the declaration matter, and they are confined to the package root.

---

Service declaration

Each entry in pi.pizzapi.services describes one service:

package.json

{
  "id": "my-service",
  "label": "My Service",
  "icon": "activity",
  "entry": "./service/index.ts",
  "panel": { "dir": "./service/panel" },
  "triggers": [
    {
      "type": "my-service:something_happened",
      "label": "Something Happened",
      "description": "Emitted when something noteworthy occurs",
      "schema": {
        "type": "object",
        "properties": {
          "itemId": { "type": "string" },
          "timestamp": { "type": "number" }
        }
      }
    }
  ]
}

Field	Required	Default	Description
id	Yes	—	Unique service ID (must match ServiceHandler.id)
label	Yes	—	Button label shown in the PizzaPi header bar
icon	No	"square"	Lucide icon name (kebab-case)
entry	Yes	—	Service module path, relative to the package root (.ts/.js/.mts/.mjs, confined to the package)
panel.dir	No	—	Panel static files directory (omit if no panel)
panel.requires	No	[]	Variables the panel needs: any of PWD, SESSION_ID, HOME, USER, PROJECT_DIR
triggers	No	[]	Inline definitions, or a path to a JSON file (see Custom Triggers)
sigils	No	[]	Inline definitions, or a path to a JSON file (see Custom Sigils)

The handler id must match the declaration

The id your module’s handler exposes must equal the declared id, or the loader rejects the service outright. Trigger types must also be namespaced by the service id (my-service:thing) — the daemon routes on triggerType.split(":")[0], so an unnamespaced trigger is silently dropped.

---

Split Configuration Files

For services with many triggers or sigils, point triggers and sigils at their own JSON files instead of inlining the arrays in package.json.

package.json

{
  "id": "my-service",
  "label": "My Service",
  "entry": "./service/index.ts",
  "triggers": "./service/triggers.json",
  "sigils": "./service/sigils.json"
}

• Directorymy-service/

  • package.json — core identity (id, label, icon, entry, panel)
  • Directoryservice/

    • triggers.json — trigger definitions (optional)
    • sigils.json — sigil type definitions (optional)
    • index.ts — ServiceHandler module
    • Directorypanel/

      • index.html — self-contained UI (HTML/CSS/JS)

triggers.json

Can be a bare array or an object with a triggers key:

[
  {
    "type": "my-service:event_happened",
    "label": "Event Happened",
    "description": "Fired when an event occurs",
    "schema": {
      "type": "object",
      "properties": {
        "path": { "type": "string" }
      }
    }
  }
]

Or wrapped in an object:

{
  "triggers": [
    {
      "type": "my-service:event_happened",
      "label": "Event Happened"
    }
  ]
}

sigils.json

Defines sigil types this service teaches the UI to render. Can be a bare array or an object with a sigils key:

[
  {
    "type": "pr",
    "label": "Pull Request",
    "description": "A GitHub pull request reference",
    "resolve": "/api/resolve/pr/{id}",
    "aliases": ["pull-request", "mr"]
  },
  {
    "type": "commit",
    "label": "Commit",
    "resolve": "/api/resolve/commit/{id}"
  }
]

Field	Required	Description
type	Yes	Sigil type name (used in [[type:id]] syntax)
label	Yes	Human-readable label
description	No	What this sigil represents
resolve	No	API endpoint path for resolving sigil IDs to display data
example	No	Canonical emit form shown to agents, e.g. "[[pr:123]]"
aliases	No	Alternative type names that resolve to this sigil

Tip

Split files are optional — inline triggers and sigils arrays work exactly the same. Use split files when the definitions are large enough to make package.json hard to read.

Migrating to Split Files

1. Copy the triggers array out of the service declaration into a new triggers.json file (as a bare JSON array).

2. Replace the triggers value with the path to that file.

3. (Optional) Do the same for sigils.

4. Restart the runner — the daemon resolves the paths automatically.

Before — everything inline:

package.json

{
  "id": "my-service",
  "label": "My Service",
  "icon": "activity",
  "entry": "./service/index.ts",
  "panel": { "dir": "./service/panel" },
  "triggers": [
    { "type": "my-service:event_a", "label": "Event A" },
    { "type": "my-service:event_b", "label": "Event B" }
  ]
}

After — split into focused files:

package.json

{
  "id": "my-service",
  "label": "My Service",
  "icon": "activity",
  "entry": "./service/index.ts",
  "panel": { "dir": "./service/panel" },
  "triggers": "./service/triggers.json"
}

triggers.json

[
  { "type": "my-service:event_a", "label": "Event A" },
  { "type": "my-service:event_b", "label": "Event B" }
]

---

Custom Triggers

Services can advertise custom trigger types that agent sessions subscribe to at runtime. This is the primary mechanism for services to push events into agent conversations.

Declaring Triggers

Add a triggers array to the service declaration. Each entry describes a trigger type:

Field	Required	Description
type	Yes	Namespaced trigger type, e.g. "my-service:event_name"
label	Yes	Human-readable label for the UI and agent tools
description	No	When/why this trigger fires
schema	No	JSON Schema describing the trigger payload
params	No	Array of subscription params the service accepts. Each: name, label, type (string/number/boolean/json), description, required, default, enum, multiselect
modes	No	Session mode IDs this trigger is scoped to (see Session Modes). Listeners for a mode-scoped trigger must spawn inside that mode’s workspace

"triggers": [
  {
    "type": "my-service:file_changed",
    "label": "File Changed",
    "description": "A watched file was modified",
    "schema": {
      "type": "object",
      "properties": {
        "path": { "type": "string" },
        "changeType": { "type": "string", "enum": ["created", "modified", "deleted"] }
      }
    }
  }
]

Trigger types are advertised to all connected viewers and agent sessions via the service_announce event when the runner starts.

Firing Triggers

Publish an Event through the unified engine (ADR-0002); Routes decide which sessions receive it. A session subscribed to your trigger type has a Route for it — your publish reaches exactly the interested sessions:

POST /api/events

await fetch(`${relayUrl}/api/events`, {
    method: "POST",
    headers: {
        "Content-Type": "application/json",
        "x-api-key": apiKey,
    },
    body: JSON.stringify({
        type: "my-service:file_changed",
        payload: { path: "/src/app.ts", changeType: "modified" },
        source: { kind: "service", id: "my-service" },
        summary: "File changed: /src/app.ts",
    }),
});

Field	Required	Description
type	Yes	Must match a type declared in the manifest triggers[] array
payload	Yes	Arbitrary JSON object delivered via routes
source	No	Publisher identity shown in the events feed
summary	No	Human-readable one-liner for the events feed
fireId	No	Idempotency key: a retried publish with the same fireId is deduplicated
responseContract	No	Declare the event awaits a response (actions/ttlMs/escalate)
target.sessionId	No	Direct one-session delivery (implicit single-session route); supports deliverAs + wake

Delivery urgency is decided by each subscriber’s route (deliverAs on the route: "steer" interrupts, "followUp" queues), not by the publisher.

Subscription params are forwarded to the source service; they are not matched against event payloads by the relay. Use route filters for server-side payload matching. See Trigger Subscription Filters.

Tip

subscribe_trigger defaults to "steer". Use "followUp" for non-urgent events so the trigger queues instead of interrupting the agent’s current turn.

Relay Connection Details

Services need three values to fire triggers:

Value	Source
runnerId	Read from ~/.pizzapi/runner.json (written by the daemon on startup)
apiKey	PIZZAPI_API_KEY or PIZZAPI_RUNNER_API_KEY environment variable
relayUrl	PIZZAPI_RELAY_URL env var, or relayUrl in ~/.pizzapi/config.json

Caution

Read these values at call time, not at init() time — the runner ID or relay URL could change if the daemon reconnects.

Agent Interaction

Once triggers are advertised, agents can interact with them using built-in tools:

Agent action	Tool
Discover available triggers	list_available_triggers()
Subscribe to a trigger type	subscribe_trigger("my-service:file_changed")
Unsubscribe	unsubscribe_trigger({ subscriptionId }) preferred; unsubscribe_trigger("my-service:file_changed") is legacy bulk behavior
Update filters/params	update_trigger_subscription({ subscriptionId, filters, filterMode })

Subscribed triggers arrive as injected messages in the agent’s conversation, with the payload and metadata from the broadcast.

Trigger Subscription Filters

By default, subscribing to a trigger type delivers every event of that type. Filters let you narrow delivery to only payloads that match specific criteria — evaluated server-side before the trigger reaches the agent.

Filters vs Params

Concept	Where evaluated	Purpose
params	Passed to the service	Subscription parameters forwarded to the service (e.g. which repo to watch)
filters	Server-side, on delivery	Evaluated against the trigger payload — only matching events are delivered

You can use both on the same subscription. Params tell the service what to emit; filters tell the relay what to deliver.

Filter objects

Each filter is a {field, value, op} object:

Field	Required	Description
field	Yes	Dot-path into the trigger payload (e.g. "status", "meta.priority")
value	Yes	Expected value — string, number, boolean, or array (array = OR within this filter)
op	No	"eq" (exact match, default) or "contains" (substring match on string fields)

Filter mode

When a subscription has multiple filters, filterMode controls how they combine:

Mode	Behavior
"and" (default)	All filters must match for the trigger to be delivered
"or"	Any filter matching is enough

Example: subscribe to only shipped orders

subscribe_trigger("orders:status_changed", {
  filters: [
    { field: "status", value: "shipped", op: "eq" }
  ],
  filterMode: "and"
})

Only orders:status_changed events whose payload contains status === "shipped" will reach the agent.

Updating filters without re-subscribing

Use the update_trigger_subscription tool to change filters or filterMode on an existing subscription without unsubscribing and re-subscribing. When subscribe_trigger returns a subscriptionId, use that ID for later edits so multiple same-type subscriptions stay distinct:

update_trigger_subscription({
  subscriptionId: "sub_abc123",
  filters: [
    { field: "status", value: "delivered", op: "eq" }
  ],
  filterMode: "or"
})

Passing only a trigger type remains supported as a legacy bulk operation, but it is not precise when multiple subscriptions of the same trigger type exist.

---

Auto-spawn routes

Use a unified spawn Route when an event should start a fresh agent session; regular session Routes deliver into an existing conversation. Create, update, and delete both kinds through /api/routes (see the API reference). The runner trigger-listener endpoints remain available only as compatibility wrappers over Routes. The API reference also documents the runner’s schedule list and route-specific test delivery.

---

Trigger History

Every trigger delivered to a session is recorded in a per-session history log. This provides an audit trail of what events reached the agent and how they were handled.

Storage details

• Backed by Redis (list per session)
• Maximum 200 entries per session (oldest trimmed on insert)
• 24-hour TTL — history expires automatically if the session is idle

REST API

Get trigger history:

GET /api/sessions/{sessionId}/triggers?limit=50

Returns { triggers: TriggerHistoryEntry[] }, most recent first. The limit query parameter defaults to 50 (max 200).

Clear trigger history:

DELETE /api/sessions/{sessionId}/triggers

Removes all history entries for the session.

TriggerHistoryEntry fields

Field	Type	Description
triggerId	string	Unique ID for this trigger delivery
type	string	Trigger type (e.g. "my-service:file_changed")
source	string	Who fired the trigger (service name or "external:api")
summary	string?	Human-readable one-liner
payload	object	The full trigger payload
deliverAs	"steer" | "followUp"	Delivery mode used
ts	string	ISO timestamp of delivery
direction	"inbound" | "outbound"	Whether the trigger was received or sent by this session
response	object?	Agent’s response — { action?, text?, ts }

Viewing in the UI

The Triggers panel in the session viewer shows the live trigger history for the active session. Each entry displays the trigger type, summary, timestamp, and delivery status. Entries update in real time as triggers are delivered.

---

Custom Sigils

Sigils are [[type:id]] tokens in agent output that render as interactive UI elements — clickable chips, status badges, or rich previews. Services define sigil types so the UI knows how to recognise and render them.

Note

The Sigils system was originally conceived by Allen Anthes.

Declaring Sigils

Add a sigils array to the service declaration, or point it at a standalone sigils.json file (see Split Configuration Files).

Each entry describes a sigil type using the ServiceSigilDef schema:

Field	Required	Description
type	Yes	Sigil type name — the token in [[type:id]] syntax, e.g. "pr"
label	Yes	Human-readable label shown in the UI, e.g. "Pull Request"
description	No	What this sigil represents
resolve	No	API endpoint path to resolve a sigil ID to display data (e.g. PR number → title/status)
example	No	Canonical emit form shown to agents by list_available_sigils, e.g. "[[pr:123]]" — agents copy it instead of inventing syntax
aliases	No	Alternative type names that resolve to this sigil (e.g. ["pull-request", "mr"])
icon	No	Lucide icon name rendered with the sigil

Example: GitHub Service Sigils

A GitHub integration service might define pr and commit sigil types:

{
  "id": "github",
  "label": "GitHub",
  "icon": "github",
  "entry": "./index.ts",
  "sigils": [
    {
      "type": "pr",
      "label": "Pull Request",
      "description": "A GitHub pull request — renders as a clickable chip with status",
      "resolve": "/api/resolve/pr/{id}",
      "aliases": ["pull-request", "mr"]
    },
    {
      "type": "commit",
      "label": "Commit",
      "description": "A Git commit hash — renders with short SHA and message",
      "resolve": "/api/resolve/commit/{id}"
    }
  ]
}

With these definitions registered, when an agent writes [[pr:42]] or [[commit:abc1234]] in its output, the UI renders them as interactive elements instead of plain text.

A resolve endpoint may also return text, the canonical plain-text representation for copy, exports, notifications, and other integrations. title remains the display fallback for existing services; unresolved sigils are preserved unchanged.

Sigil types are advertised to all connected viewers via the service_announce event, the same way trigger definitions are.

---

Services Without Panels

A service doesn’t need a UI panel. Omit panel from the manifest and skip announcePanel(). The service still runs in the background and can fire triggers:

{
  "id": "my-watcher",
  "label": "File Watcher",
  "entry": "./index.ts",
  "triggers": [
    { "type": "my-watcher:file_changed", "label": "File Changed" }
  ]
}

---

Session Modes

A session mode is a workspace with its own identity in the UI. A mode claims a directory; every session whose working directory is inside it belongs to that mode, including sessions started from the terminal.

Modes exist so a package can make PizzaPi feel like the right tool for non-coding work. A mode declares what it wants and PizzaPi renders it natively — modes do not ship UI code.

{
  "id": "pizzawork",
  "label": "PizzaWork",
  "entry": "./src/service.ts",
  "sessionModes": [
    {
      "id": "work",
      "label": "Work",
      "icon": "briefcase",
      "workspace": "~/Documents/Workspace",
      "ui": {
        "preset": "work",
        "toolRendering": "activity",
        "vocabulary": { "session": "task", "sessions": "tasks" },
        "accent": "#7c3aed",
        "composerPlaceholder": "What do you need done?",
        "home": {
          "greeting": "What are we working on?",
          "suggestions": [
            { "label": "Daily report", "icon": "sun", "prompt": "Write my daily report" }
          ]
        },
        "artifacts": { "enabled": true },
        "scheduled": true
      }
    }
  ]
}

Mode fields

Field	Type	Description
id	string	Unique mode ID within the package
label	string	Name shown on the mode picker
icon	string	Lucide icon name
workspace	string	Home-relative path (~/...), resolved per runner
ui	object	Optional — how PizzaPi should render this mode’s sessions

ui fields

Every field is optional, and omitting ui entirely gives the standard coding UI. A mode only declares what differs.

Field	Type	Default	Description
preset	"coding" | "work"	"coding"	work hides git, terminal and process chrome
chrome	object	from preset	Per-surface overrides: git, terminal, processes, diffs, files
toolRendering	"detailed" | "activity"	preset-derived	activity collapses each tool call to a human-language line that expands on click
vocabulary	object	—	session, sessions, newSession noun overrides
accent	string	—	Color token or hex used for the mode badge
composerPlaceholder	string	—	Placeholder text in the composer
home	object	—	greeting, suggestions[] (label, icon, prompt), recent
artifacts	object	disabled	enabled, plus optional extensions[]
scheduled	boolean	false	Show standing time:cron / time:at instructions

What each surface does

Chrome. preset: "work" hides the git, terminal and process affordances. A hidden panel is also closed, so switching from a coding session cannot strand a panel with no button to reopen it. chrome overrides individual flags:

"ui": { "preset": "work", "chrome": { "git": true } }

Activity rendering. With toolRendering: "activity", a tool call renders as one line — Created q3-review.md, Searched the web for "freight rates" — that expands to the full card. Nothing is hidden; it just stops being the default way the transcript reads.

Artifacts. When enabled, a file written into the workspace whose extension the mode claims renders as an artifact card with an inline preview: Markdown, images, PDF, CSV tables and sandboxed HTML. Formats browsers cannot render (docx, pptx, xlsx) get a download card. Omit extensions for a document-centric default set.

Mode home. Selecting a mode with no session open shows a composer that starts a task directly in the mode’s workspace, its suggestion chips, and its recent tasks. Suggestions prefill the composer rather than sending, so an opening like "Research " can be completed before it runs.

Scheduled. Lists standing time:cron / time:at / time:timer_fired subscriptions across the mode’s sessions, with what runs, when, which task owns it, and a cancel. See Time triggers.

Note

A mode is claimed by workspace containment, not by how a session was started. cd ~/Documents/Workspace && pizza gets the mode, and so does a task working in ~/Documents/Workspace/clients/acme.

---

Connectivity Services

A connectivity service owns a live connection to an outside network — a chat gateway, a webhook receiver, a message queue, an MQTT broker. This is the shape to reach for whenever sessions need to talk to a third-party system that keeps a persistent connection open.

The rule is simple: the daemon owns one connection, and sessions never open their own.

Why not a per-session abstraction

The tempting design is a per-session object — every session gets a bridge it can connect and send through. It does not survive contact with a real service:

Problem	What happens with N sessions
N connections	Ten sessions means ten gateway connections on one bot token. Discord rate-limits identifies per token; other providers ban outright.
Duplicate inbound	Every connection receives every event. Ten sessions each see the same message and ten agents answer it.
Lifetime mismatch	Connections belong to the machine, not the conversation. Sessions start and stop constantly; a connection that dies with a session cannot receive anything between sessions — including the message that should start one.
Credential spread	The token has to be readable by every session process instead of living in one place on the daemon.
No routing authority	“Which session owns this thread?” has no answer if every session holds its own map.

The daemon is the only component with the right lifetime and the right cardinality. Everything else follows from putting the connection there.

One connection, one owner

If you find yourself writing a class that a session constructs to talk to an external network, stop. That is the wrong shape. Move the connection to a runner service and give sessions a message channel to it.

The two directions

Inbound and outbound use different transports, because they have different routing problems.

Inbound — outside world → session. The service already knows which session the event belongs to (it owns the mapping), so it delivers straight to that one session over HTTP:

// Targeted: this session only. No subscription required.
await fetch(`${relayUrl}/api/events`, {
    method: "POST",
    headers: { "Content-Type": "application/json", "x-api-key": apiKey },
    body: JSON.stringify({
        type: "discord:message",
        payload: { threadId, text },
        target: { sessionId, deliverAs: "steer" },
        source: { kind: "service", id: "discord" },
    }),
});

Publish without a target when the event has no single owner and any interested session should hear it — a CI result, a repo-wide push. Every session with a route for the type receives it; target.sessionId addresses exactly one conversation.

Outbound — session → outside world. The session emits a service_message envelope on its own relay socket. The relay forwards it to the daemon, which routes it to the service by serviceId:

// In a session-side extension.
socket.emit("service_message", {
    serviceId: "discord",
    type: "discord_post",
    payload: { sessionId, content },
});

The service picks it up in the handler it registered during init():

init(socket, opts) {
    this.onMessage = (envelope) => {
        if (envelope.serviceId !== "discord") return;
        if (envelope.type === "discord_post") void this.post(envelope.payload);
    };
    socket.on("service_message", this.onMessage);
}

Note what the session does not do: it does not look up a thread, hold a token, or know whether the bridge is even configured. It emits one envelope and the service drops it if that session has no mapping. Routing lives in exactly one place.

Round-trip vs fire-and-forget

Add a requestId and listen for the matching reply when the session needs an answer (create_tunnel does this — see packages/cli/src/extensions/tunnel-tools.ts). Omit it for notifications, so a slow or disconnected external service can never stall an agent turn.

service_message delivery is at-least-once

The relay’s emitToRunner() emits to the per-runner room and to the local runner socket as a rolling-deploy fallback. A local runner is in both, so in practice every envelope arrives twice.

This is invisible for idempotent operations — exposing an already-exposed port is a no-op, and request/response pairs are matched by requestId, so the first reply wins. It is not invisible for side effects: an un-deduped handler posts every chat message twice.

Stamp each envelope with a unique id and skip ids you have already handled:

#seen = new Set<string>();

#isDuplicate(id: unknown): boolean {
    if (typeof id !== "string" || !id) return false;   // no id — process it
    if (this.#seen.has(id)) return true;
    this.#seen.add(id);
    if (this.#seen.size > 500) {
        const oldest = this.#seen.values().next().value; // insertion-ordered
        if (oldest !== undefined) this.#seen.delete(oldest);
    }
    return false;
}

Treat any handler with an external side effect — posting a message, sending an email, charging something — as needing this.

Mapping sessions to conversations

The service owns the mapping and is responsible for its whole lifecycle:

• Persist it. Write bindings to the service’s settings.json (write-to-temp then rename) so a daemon restart does not orphan every live conversation.
• Index both ways. Keep sessionId → conversation in memory for outbound routing; the persisted map is keyed by conversation for inbound.
• Clean up on session end. Implement handleSessionEnded(sessionId) to drop the binding, and tell the remote side the conversation is over.
• Unbind on delivery failure. A 404 from a direct-target POST /api/events means the session is gone (or not owned by the caller). Drop the binding rather than silently swallowing every subsequent message.

Driving the session from the far side

A connectivity service usually wants to control the session, not just relay text. Most of that already exists over HTTP with API-key auth:

Action	Endpoint
Spawn a session	POST /api/runners/:runnerId/spawn
Send a trigger event to a session	POST /api/events with target.sessionId
List sessions	GET /api/sessions
List models	GET /api/runners/:runnerId/models
Switch a session’s model	POST /api/sessions/:id/model
Abort a session’s current turn	POST /api/sessions/:id/abort
Set thinking level	POST /api/sessions/:id/thinking

requireSession() accepts API keys

Despite the name, requireSession() falls back to validateApiKey(), so routes using it are already reachable from a runner service. Check before adding an auth shim — the endpoint you want probably works with x-api-key today.

Anything a viewer drives over a socket event has no HTTP equivalent unless one is added. POST /api/sessions/:id/model exists precisely because switching a live model was viewer-only (model_set), and a runner service is not a viewer. There is still no HTTP route to kill a session — abort only stops the current turn; kill_session is server→runner only.

Worked example

The Discord bridge implements exactly this pattern — one gateway connection for the runner, thread-per-session bindings, session spawning from a mention, native slash commands, and a panel for status and controls. Its session-side half is packages/cli/src/extensions/discord-mirror.ts, which forwards each settled assistant turn and nothing else.

Commands that pick from a list render a select menu rather than asking the user to type an exact id — /models shows the available models with the current one preselected, /sessions binds the thread to a running session. Two details worth copying:

• Defer before any network call. Discord expires an interaction after 3 seconds, so deferReply() first and editReply() once the data arrives.
• Encode the target in custom_id. The menu carries the thread it was built for, so a stale menu left open elsewhere cannot retarget a different binding.

---

ServiceHandler API

The service module must default-export a class implementing the ServiceHandler interface:

import { existsSync, readFileSync } from "node:fs";
import { join, dirname } from "node:path";
import { homedir } from "node:os";
import { fileURLToPath } from "node:url";
import type { Server } from "bun";

// ── Relay helpers (for firing triggers) ───────────────────────────────────

function readRunnerId(): string | null {
    try {
        const home = process.env.HOME || homedir();
        const raw = JSON.parse(readFileSync(join(home, ".pizzapi", "runner.json"), "utf-8"));
        return typeof raw?.runnerId === "string" ? raw.runnerId : null;
    } catch { return null; }
}

function resolveRelayUrl(): string {
    const home = process.env.HOME || homedir();
    let raw = process.env.PIZZAPI_RELAY_URL?.trim();
    if (!raw) {
        try {
            const cfg = JSON.parse(readFileSync(join(home, ".pizzapi", "config.json"), "utf-8"));
            if (typeof cfg?.relayUrl === "string" && cfg.relayUrl !== "off") raw = cfg.relayUrl.trim();
        } catch { /* ignore */ }
    }
    raw = raw || "http://localhost:7492";
    if (raw.startsWith("ws://"))  return raw.replace(/^ws:/, "http:").replace(/\/$/, "");
    if (raw.startsWith("wss://")) return raw.replace(/^wss:/, "https:").replace(/\/$/, "");
    return raw.replace(/\/$/, "");
}

function getApiKey(): string | null {
    return process.env.PIZZAPI_RUNNER_API_KEY ?? process.env.PIZZAPI_API_KEY ?? null;
}

async function publishTrigger(
    type: string,
    payload: Record<string, unknown>,
    opts?: { summary?: string },
): Promise<void> {
    const apiKey = getApiKey();
    if (!apiKey) return;

    await fetch(`${resolveRelayUrl()}/api/events`, {
        method: "POST",
        headers: { "Content-Type": "application/json", "x-api-key": apiKey },
        body: JSON.stringify({
            type,
            payload,
            ...(opts?.summary ? { summary: opts.summary } : {}),
            source: { kind: "service", id: "my-service" },
        }),
    }).catch(err => console.error("[my-service] trigger publish failed:", err));
}

// ── Service ───────────────────────────────────────────────────────────────

class MyService {
    get id() { return "my-service"; }

    #server: Server | null = null;

    init(_socket: any, { announcePanel, announceSigilServer }: any) {
        const panelDir = join(dirname(fileURLToPath(import.meta.url)), "panel");
        const indexHtml = readFileSync(join(panelDir, "index.html"), "utf-8");

        this.#server = Bun.serve({
            port: 0,
            fetch: async (req) => {
                const url = new URL(req.url);

                if (url.pathname.endsWith("/api/data")) {
                    return Response.json({ hello: "world" }, {
                        headers: { "Access-Control-Allow-Origin": "*" },
                    });
                }

                if (url.pathname.endsWith("/api/do-thing") && req.method === "POST") {
                    // Publish an event; routes decide which sessions receive it
                    void publishTrigger("my-service:something_happened", {
                        itemId: "abc-123",
                        timestamp: Date.now(),
                    }, { summary: "A thing happened" });

                    return Response.json({ ok: true }, {
                        headers: { "Access-Control-Allow-Origin": "*" },
                    });
                }

                return new Response(indexHtml, {
                    headers: { "Content-Type": "text/html; charset=utf-8" },
                });
            },
        });

        if (announcePanel) {
            announcePanel(this.#server.port);
        }
        if (announceSigilServer) {
            announceSigilServer(this.#server.port);
        }
    }

    dispose() {
        if (this.#server) {
            this.#server.stop(true);
            this.#server = null;
        }
    }
}

export default MyService;

The default export may be a handler instance, a class (the loader calls new), or a factory function returning a handler. Whichever shape you use, its id must equal the declared id.

Lifecycle (ServiceHandler in @pizzapi/extension-sdk):

• init(socket, options) — called once when the runner starts; the same socket instance survives reconnects. options carries isShuttingDown(), plus announcePanel(port) (only if the manifest declares a panel) and announceSigilServer(port) (for panel-less sigil resolvers).
• dispose() — called on shutdown. Must clean up the HTTP server to avoid port leaks.
• handleSessionEnded?(sessionId) — optional; drop per-session state (bindings, watchers) when a session ends.
• reconcileSubscriptions?(subscriptions, options) — optional; called after runner reconnect with the current subscriptions for your trigger types. Implement it if you keep per-subscription runtime state (timers, watchers) and return { applied, errors? }.

Caution

Always call announcePanel(port) after starting your server — without it, the panel won’t appear in the UI. If your service declares sigils but no panel, call announceSigilServer(port) so the tunnel can route resolve requests. If your service has neither, skip both calls.

---

Panel Guidelines

Panels render inside an iframe in the PizzaPi web interface. The bottom dock is 280px tall; the side dock is 320px wide. Key constraints:

• Self-contained — all CSS and JS must be inline (no build step required)
• Dark theme — match PizzaPi’s dark UI:

  body { background: #0a0a0b; color: #e4e4e7; font-size: 11px; }
  /* Borders: #27272a */

• Relative API URLs — use ./api/data (the tunnel proxy preserves the path)
• Polling for live data — use setInterval + fetch (typically 3–5s intervals)
• Keep panels self-contained — external resources may fail depending on CSP/network
• CORS headers — API responses need Access-Control-Allow-Origin: *
• Opaque origin unless a tunnel domain is set — panels never run as the PizzaPi origin. Without PIZZAPI_TUNNEL_DOMAIN they load from a signed relay path inside a sandbox with an opaque origin: localStorage, sessionStorage, and document.cookie are in-memory for that page load only, Set-Cookie is dropped, and there is no access to the parent window. Configure a tunnel domain if a panel must persist browser state.
• Panel loads are cross-site — the iframe navigation that loads your panel arrives with Sec-Fetch-Site: cross-site, and on the signed relay path the panel’s own requests carry Origin: null. Don’t reject reads on origin checks; apply CSRF checks only to state-changing methods (POST/PUT/DELETE), and on the signed path authenticate those some other way than Origin.

---

How It Works

1. The runner daemon reads pi.pizzapi.services from every configured package that holds a daemon-service grant
2. It resolves panel metadata and trigger definitions from the declaration (or the split JSON files it points at)
3. It loads the service module and calls init(socket, { announcePanel })
4. The service starts Bun.serve() on port 0 and calls announcePanel(port)
5. The daemon aggregates all trigger defs and sigil defs from all loaded services
6. The daemon emits a service_announce event with panels, trigger defs, and sigil defs
7. The UI renders panel iframes; agents discover triggers via list_available_triggers()
8. When a service publishes an event via POST /api/events, the routing engine delivers it to every route matching the type

---

Quick Reference

Task	How
Declare triggers	Add triggers[] to the service declaration, or point it at triggers.json
Declare sigils	Add sigils[] to the service declaration, or point it at sigils.json
Fire a trigger	POST /api/events with API key (routes decide recipients)
Serve static files	Bun.serve() with readFileSync for index.html
Expose an API	Add route checks in the fetch handler
Get a random port	Bun.serve({ port: 0 }) then read .port
Announce the panel	Call announcePanel(server.port) in init()
Announce a sigil server	Call announceSigilServer(server.port) in init()
Match PizzaPi theme	#0a0a0b bg, #e4e4e7 text, #27272a borders
Choose an icon	Browse lucide.dev/icons, use kebab-case

---

Troubleshooting

Problem	Fix
Triggers declared but not delivered	You must publish them via POST /api/events — declaring them in the manifest only advertises them
Missing runnerId or apiKey	Read from ~/.pizzapi/runner.json and env vars at call time, not init time
Panel doesn’t appear in UI	Check that announcePanel() is called after the server starts
Blank panel iframe	Tunnel proxy can’t reach local server — check the service is still running
API calls fail in panel	Add Access-Control-Allow-Origin: * header to API responses
Large panel doesn’t fit	Bottom dock is 280px tall; side dock is 320px wide — design accordingly
Absolute API URLs break	Use relative URLs (./api/...) — the tunnel proxy rewrites paths
Port leak after restart	Ensure dispose() calls server.stop(true)
